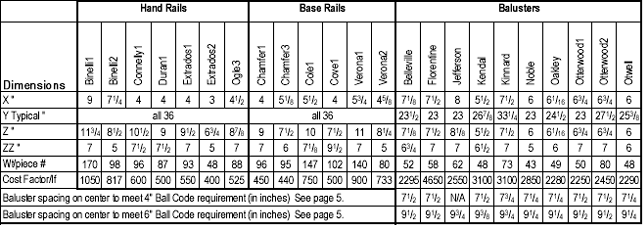

Balustrade Components Dimensional Table

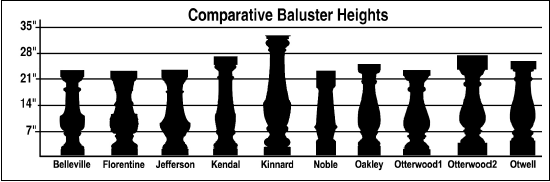

Notes: Balusters with lugs: add CF of 500 to the Cost Factors noted above. Optional half balusters may be purchased separately for the same cost as the standard baluster. Weights and sizes are divided by two. The X and Z dimensions are the maximum width across the main body of a baluster. The ZZ dimension is the maximum size top and bottom for matching up to hand and base rail ZZ dimensions when customizing. Below is a proportional chart designed to help visualize the size of the balusters. All balusters are square top and bottom.
