Ionic Columns

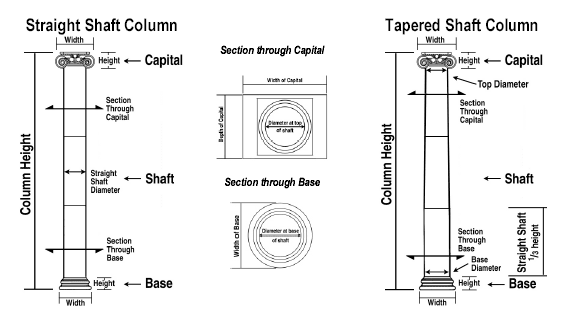

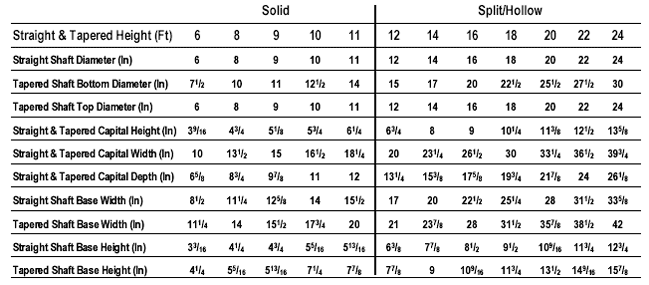

One of the three orders of columns developed by the Greeks, Ionic column capitals are rectangular and use highly decorated spiral volutes. The ratio of the shaft base diameter (in inches) is approximately equal to 1.25 times the height (in feet) for tapered shaft columns and 1.0 for straight shaft columns. Shafts are available in smooth or fluted surface.
